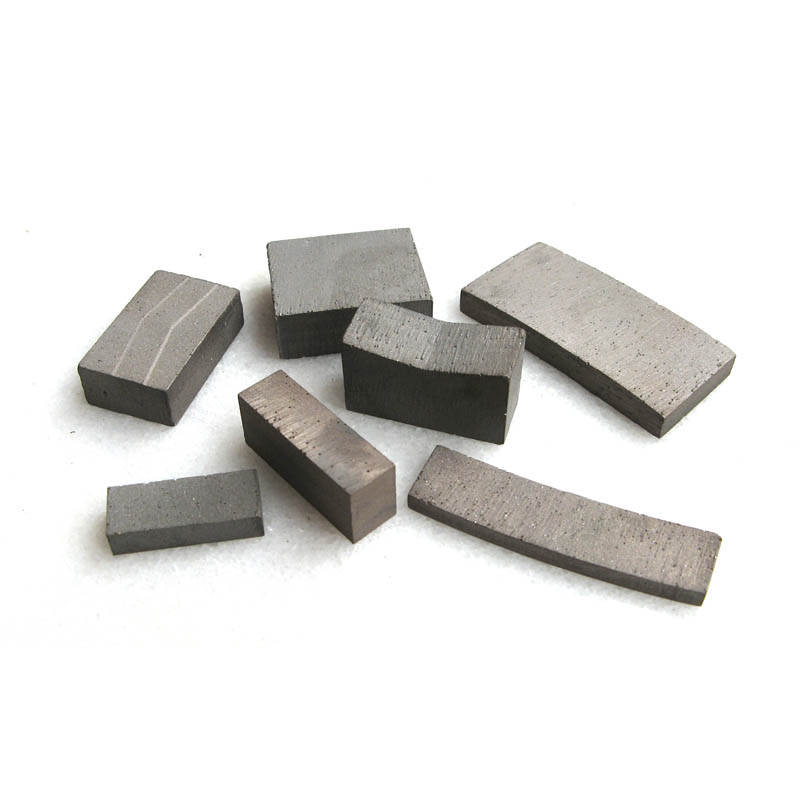

Diamond segments with various dimensions and shapes, for cutting granite, marble, sandstone, concrete, ceramic, asphalt,etc.
Specification:
Diameter | Segment Dimension(mm) | Segment Number | |||
Inch | mm | Length | Thickness | Height | |
36" | 900 | 24 | 7.0/6.4 | 12/15/20 | 64 |
40" | 1000 | 24 | 7.4/6.8 | 12/15/20 | 70 |
48" | 1200 | 24 | 7.8/7.2 | 12/15/20 | 80 |
52" | 1300 | 24 | 8.4/7.8 | 12/15/20 | 88 |
64" | 1600 | 24 | 9.2/8.6 | 12/15/20 | 108 |
72" | 1800 | 24 | 10/9.4 | 12/15/20 | 120 |
80" | 2000 | 24 | 10.8/10.2 | 12/15/20 | 128 |
86" | 2200 | 24 | 10.8/10.2 | 12/15/20 | 132 |
100" | 2500 | 24 | 11.8/11.2 | 15/20 | 140 |
120" | 3000 | 24 | 13.0/12 | 15/20 | 160 |
Other specification can be ordered.
